KU-4 Truck Specs – View/Download PDF
Features & Highlights:

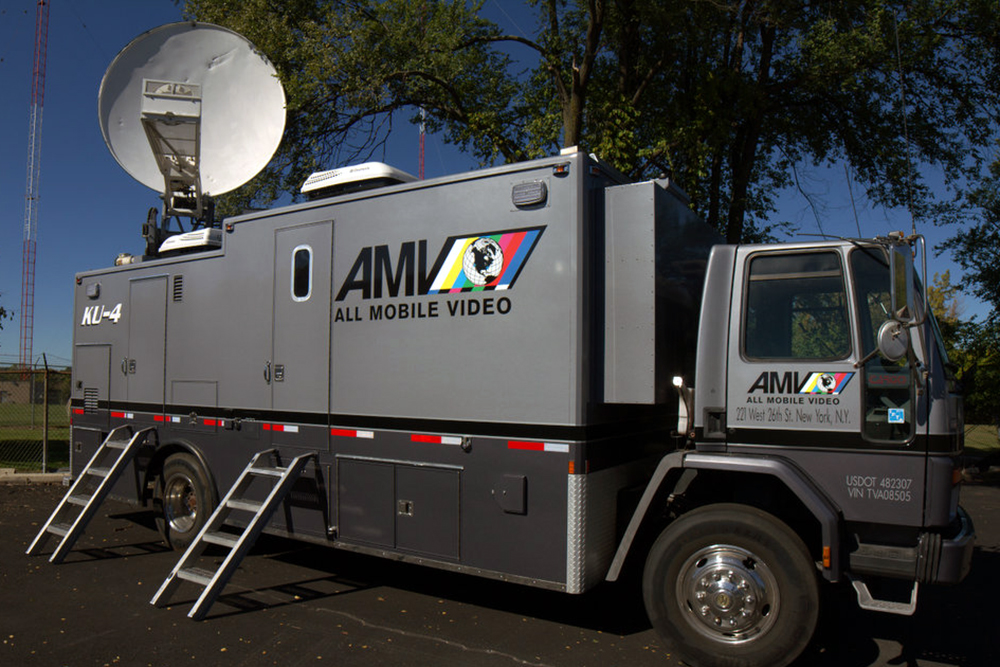

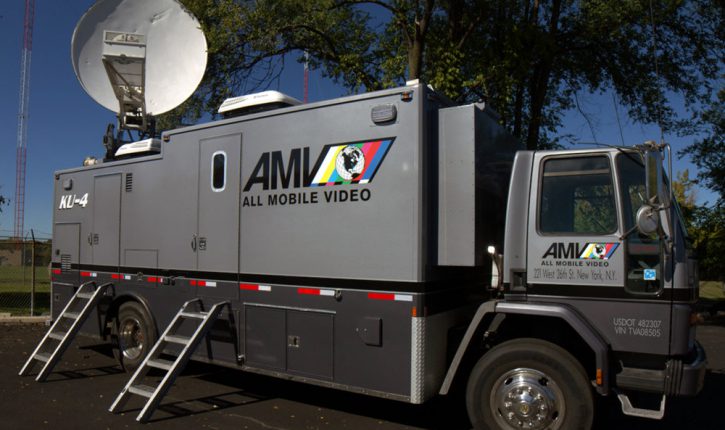

- 2.4 Meter 3 port KU Satellite dish w/ 2 x 300 Watt SSPB’s w/Combiner
- 20 KW Generator
- 8 Channel ASI Mux
- Up to 6 X Adtec Encoders- MPEG4 4:2:2 DVB-S2 8PSK & BISS MODE 1 ENCRYPTION
- Up to 6 X Adtec Decoders w/ MPEG4 & BISS MODE 1 DECRYPTION
- Up to 6 Recording Devices
- 64×64 3G Pesa Router w/ Fiber I/O, MADI, Analog Audio & AES
- 3 Miranda XVP Frame Syncs/Cross Converters/Color Correctors w/ Dolby-E & Dolby Digital (AC3) Encoders/Decoders
- Miranda 48 input Multiviewer
- Grass Valley Kula 2ME-HD/1ME4K SD/HD/3G/4K UHD Switcher & Panel
- 2 x Miranda Clean and Quiet 16×2 Switchers
- 5 x Hitachi SK-HD1300 cameras with full RCP/CCU chains
- 2 x DVD Recorder/Players
- RTS Zeus 32 port Matrix Intercom w/ CC to RTS/RTS to CC Converters w/ 8 TIFF’s
- 4 On-Board Cellphones
- Yamaha QL-1 Audio console w/ AES, Dante and MADI I/O

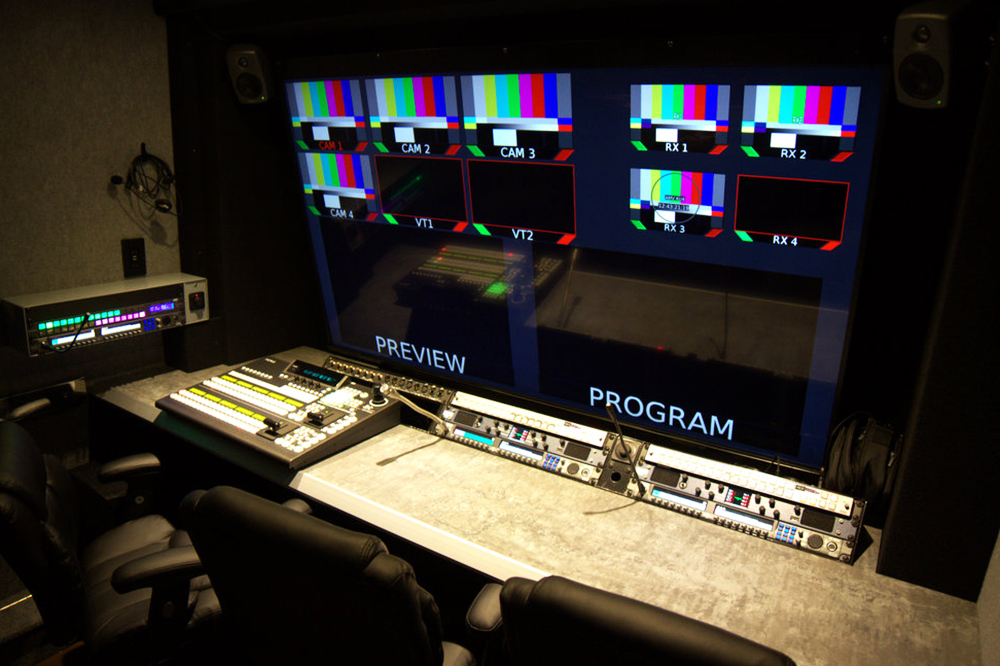

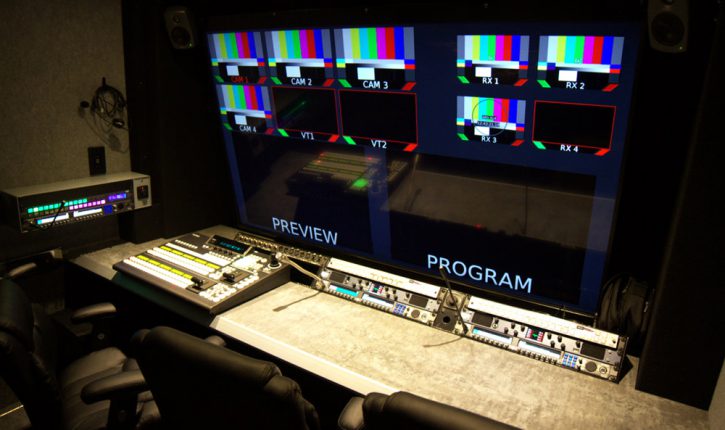

- 72″ customizable LCD monitor wall
- 2 x 17″ Sony OLED QC stations
- DirecTV HD receiver
POWER REQUIREMENTS:
100 AMP, Single Phase, 208 Volts
SPACE REQUIREMENTS:

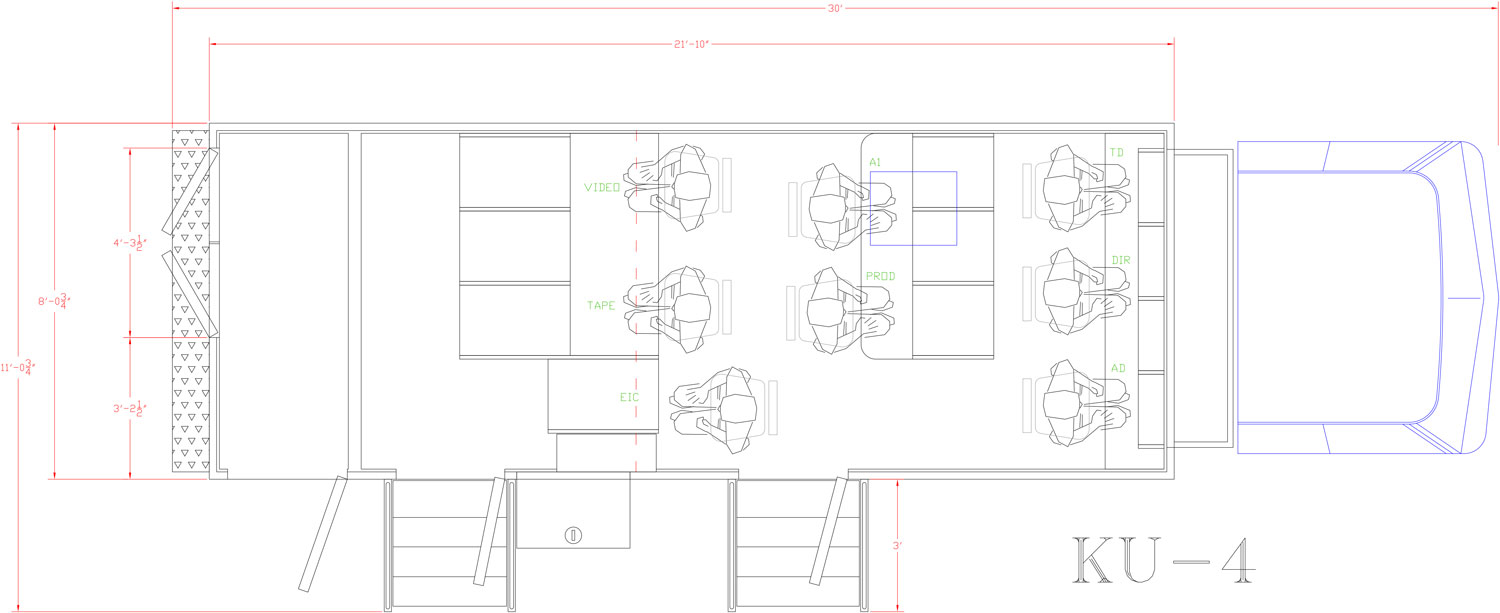

29’ Long x 12’4” High (Dish Down) x 7’6” Wide
* 3FT Wider w/ Stairs Down
Mobile unit equipment list subject to change without notice. Additional equipment available. Please consult with your AMV Account Executive regarding availability and per-event specifications.
