KU-5

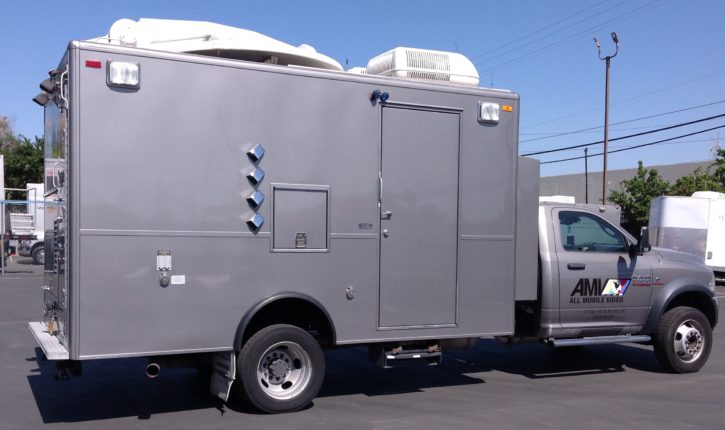

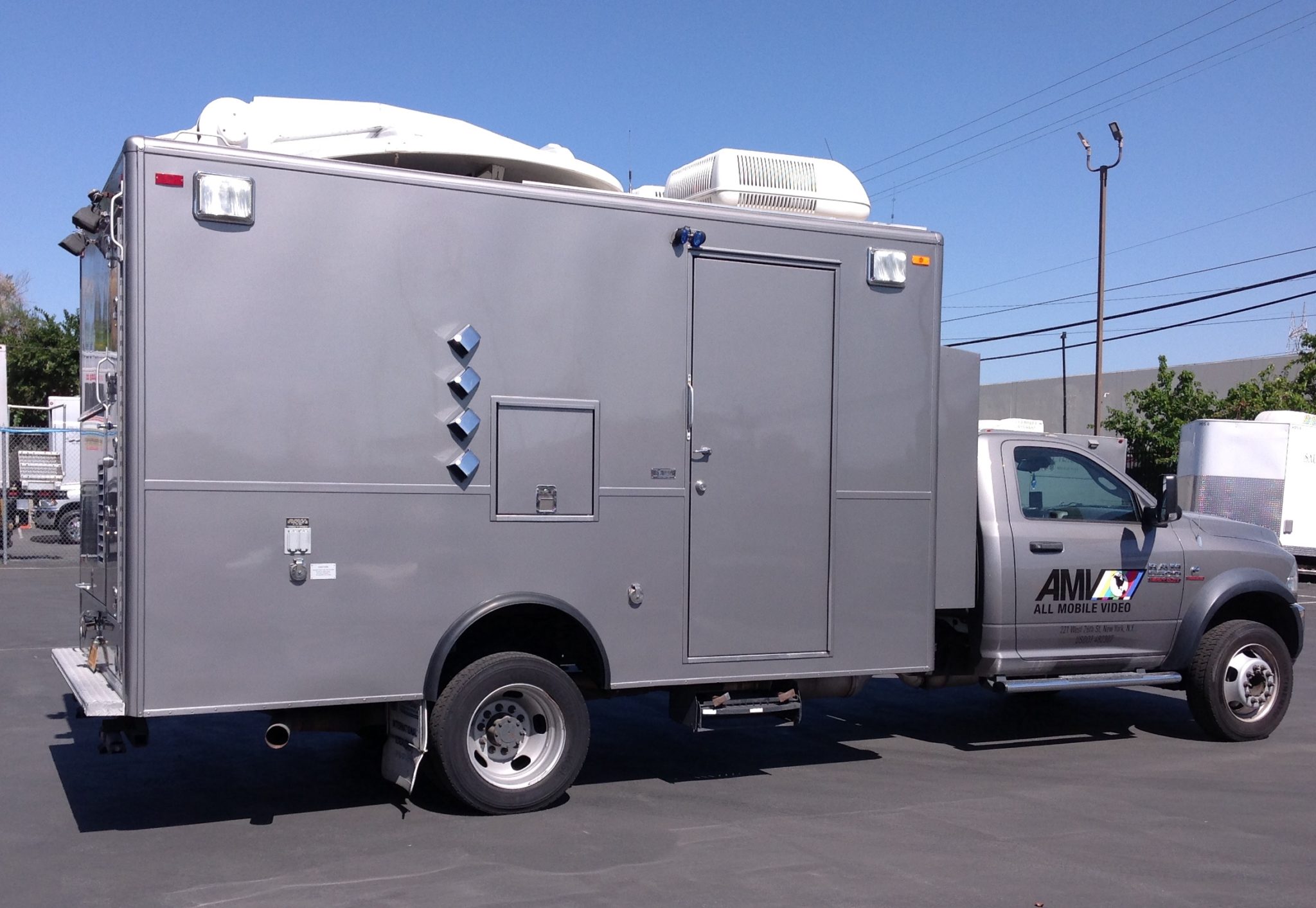

27’ 10” Long Uplink Truck

Contact
Contact

KU-5 Truck Specs – View/Download PDF

RF PACKAGE:

  • Antenna: 1.8m AVL, Multiple Feeds on Either Polarity, Downlink Multiple Signals on
    Either Polarity
  • Amps: Two ETM 450w – Separate or Power Combined
  • Encoders: Ateme or Adtec, MPEG-2/4, DVB-S/2, Q/8PSK

VIDEO:

  • Router: 32X32 Sierra Video HD/SD Multi-Format
  • Monitoring: Multi-Viewer
  • DAs: Ross HD/SD Re-Clocking, Re-EQing Das
  • Conversions: AJA FS1 Frame Sync/Converter (Up, Down, Cross, Embed,
    De-Embed)

AUDIO:

  • Mix/Monitoring: 16 Channel Analog, AES, Embedded and Decoding of Dolby-E
    Surround Sound

NET RETURN:

  •  DSS Receiver

CABLE:

  • Truck Carries at Least 500’ of Fiber & Coax

POWER REQUIREMENTS:

  • Shore 100 AMP Single Phase, 220 Volts
  • 150’ of Shore Power Cable on Board W/ Standard Camlock or Pigtail
  • On-Board Onan 12.5KW Diesel Generator

SPACE REQUIREMENTS:

27’ 10” L X 12’3” H (Add 8.5’ For Antenna) X 8’ W (Add 3’ For Door)
Weight 20,000 Pounds
Dodge Ram 5500 Diesel

Mobile unit equipment list subject to change without notice. Additional equipment available. Please consult with your AMV Account Executive regarding availability and per-event specifications.
