Features & Highlights:

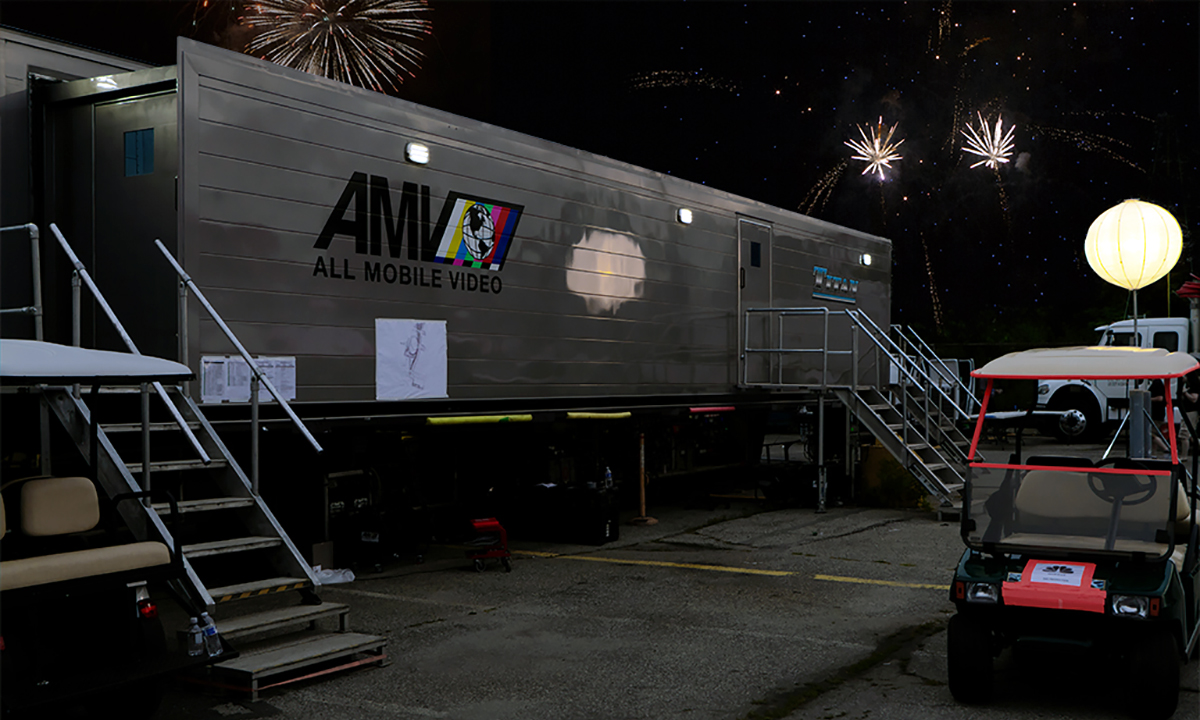

- AMV’s Largest and Most Powerful Multi-Format Production Truck
- Sony MVS 8000X 5 ME W/ Aux Buses That Can Dissolve (Up to 12)
- Sony HDC-3500V Cameras
- Wired for 24 Video Recording Machines and 4 EVS Chassis

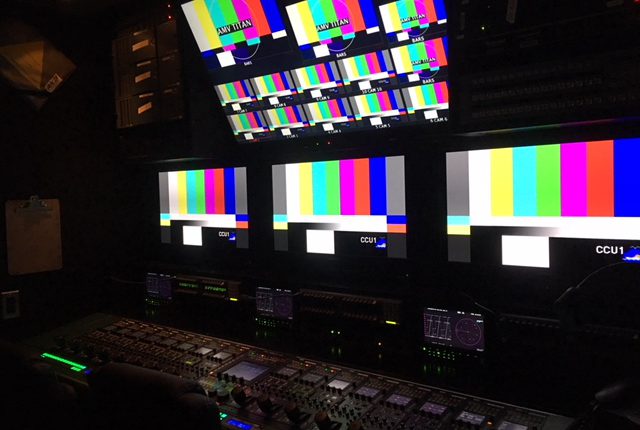

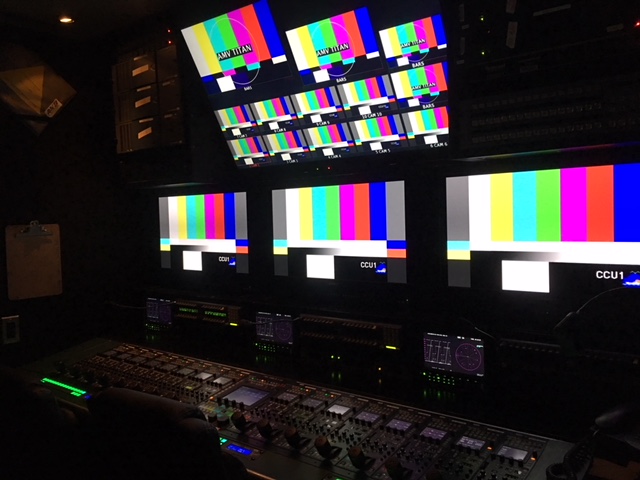

- 3- 30” Sony BVM-x300 Monitors in Video & Production
- 1- 30” Sony BVM-x300 for LD; 3-leader 5490 Scopes in Video
- Comms EIC Position, Studer Vista 8

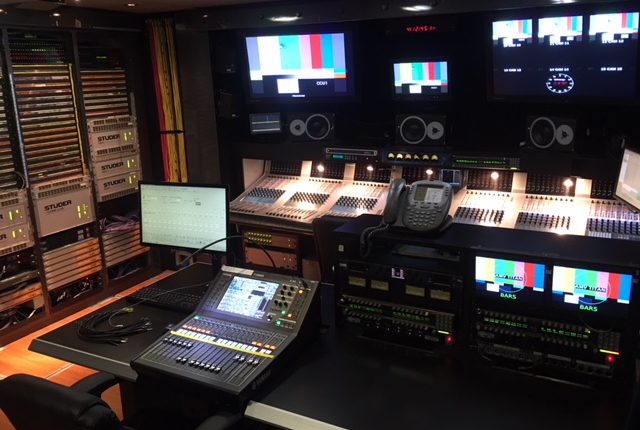

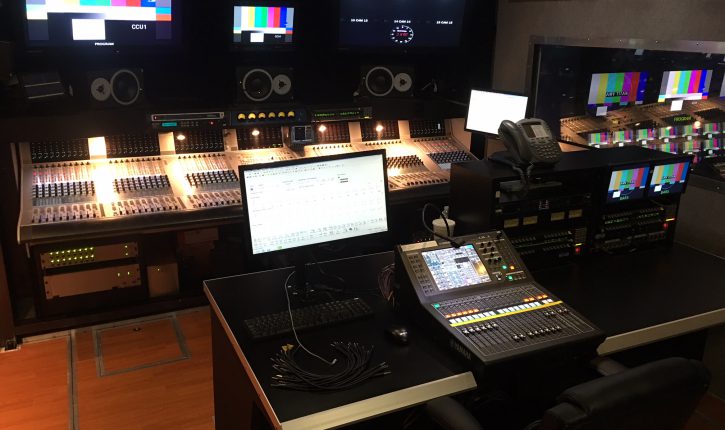

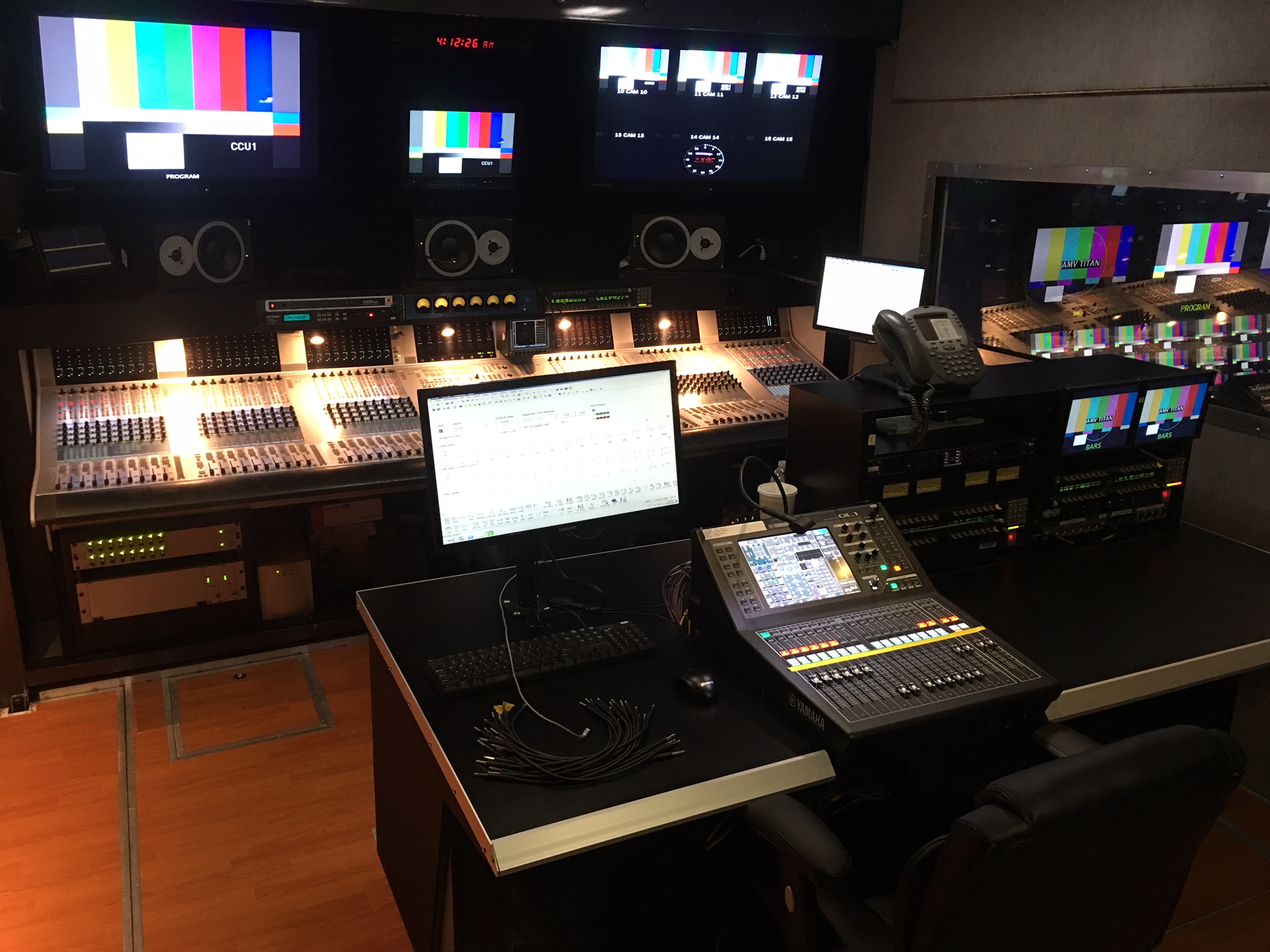

- Audio Producer/Audio EFX Back Bench Yamaha QL 1 in Audio I
- 32 IN and 64 OUT Single Mode ST Fiber to I/O from Pesa Router
- MADI In/Out on Router
- 16 Up/Down/Cross Converters
- 59’ 4” Triple-Expando
Titan Truck Specs – View/Download PDF
PRODUCTION:
- Sony MVS 8000X 3G Switcher 5 ME W/ 4 Internal DME Channels & Re-Sizers on all Keyers
AUDIO:

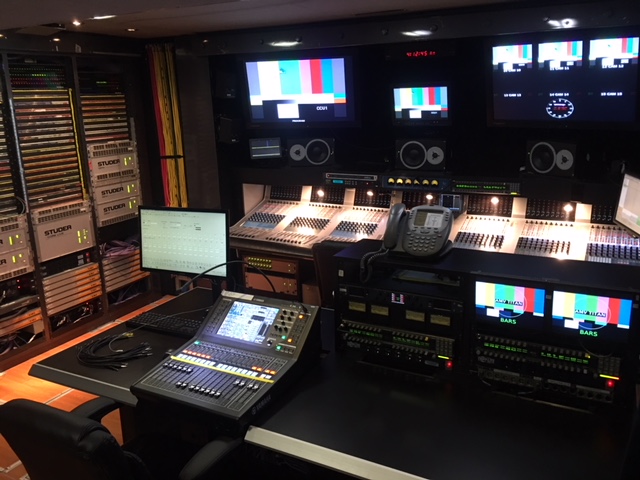

- • Studer Vista X W/ 72 Faders on the Surface with built in dual PCM96 effects processors
- 2 Studer Stage Box W/ SMPTE Fiber (Optional)
- 1- Yamaha QL 1
CAMERAS:
- Sony HDC-3500V (Wired for 24)
RECORD & PLAYBACK:
- Up to 4 6-Channel EVS
- Up to 24 Recording Devices
COMMUNICATIONS:
- RTS Adam Intercom Matrix 128 x 128 Ports
- 8– RTS Tiff 4000s
GRAPHICS:
POWER REQUIREMENTS:
2 Services, 200 AMP, 3 Phase, 208 Volts (4 OT Cable Needed for 400 AMP Service)
1 Service, 100 AMP, 3 Phase, 208 Volts (Only Required if Used for Production)
SPACE REQUIREMENTS:

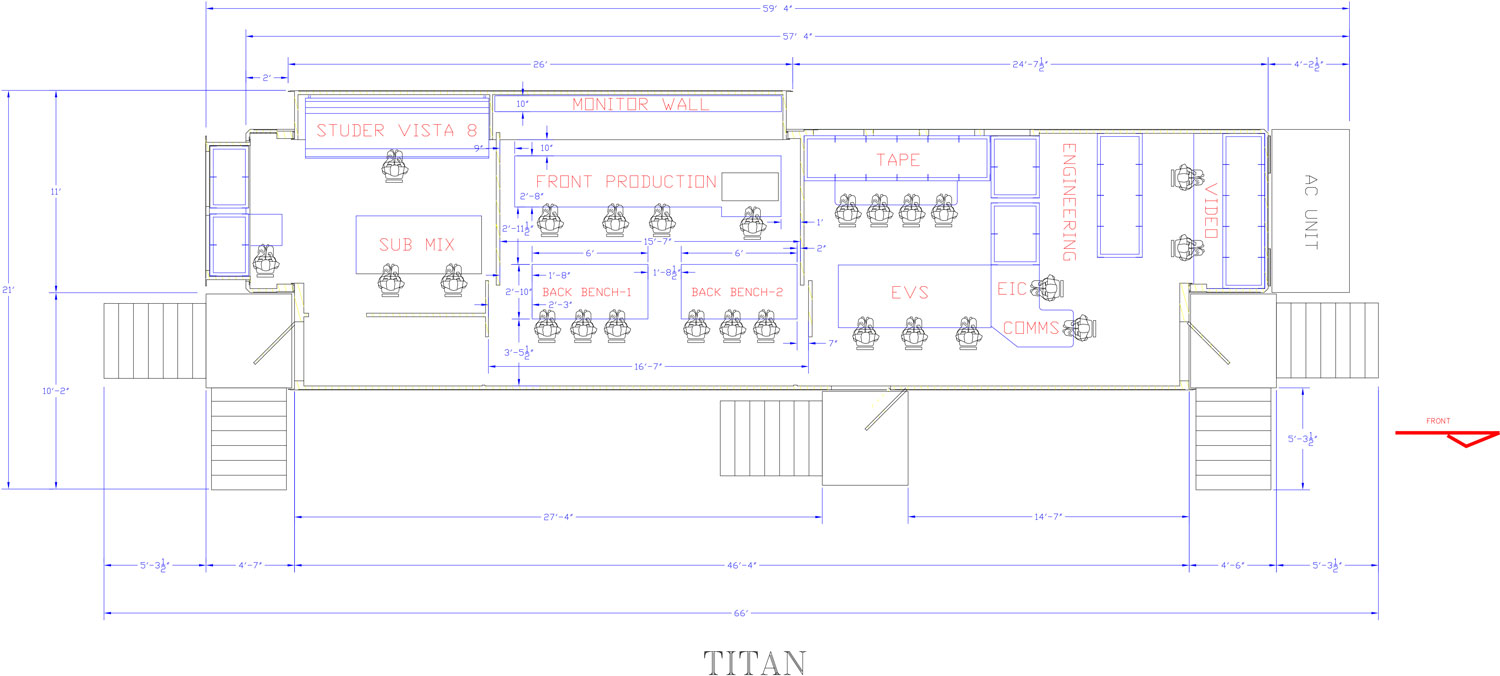

- A-Unit: (All Measurements Without Tractor)
57’4” Long x 13’6” High x 8’6” Wide– Closed (W/ the Longest Tractor Length is 77’4”)
59’4” Long x 13’6” High x 21’ Wide– Expanded W/ AC Flaps Open & Stairs Perpendicular to Curb

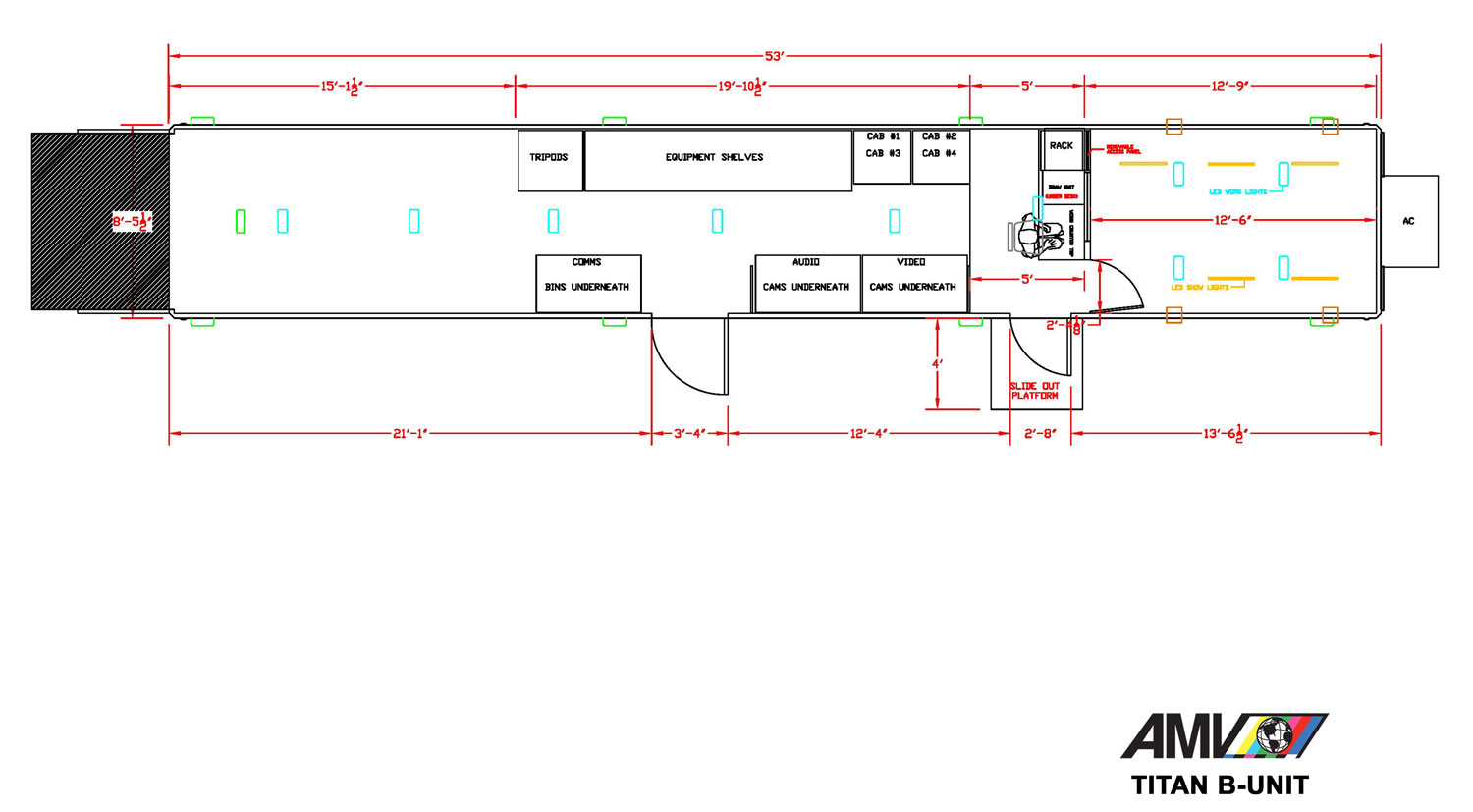

- B-Unit: (All Measurements Without Tractor)
56’4” Long x 13’6” High x 8’6” Wide– Closed
64’4” Long x 13’6” High x 8’6” Wide– W/ Liftgate Down
Mobile unit equipment list subject to change without notice. Additional equipment available.
Please consult with your AMV Account Executive regarding availability and per-event specifications.
