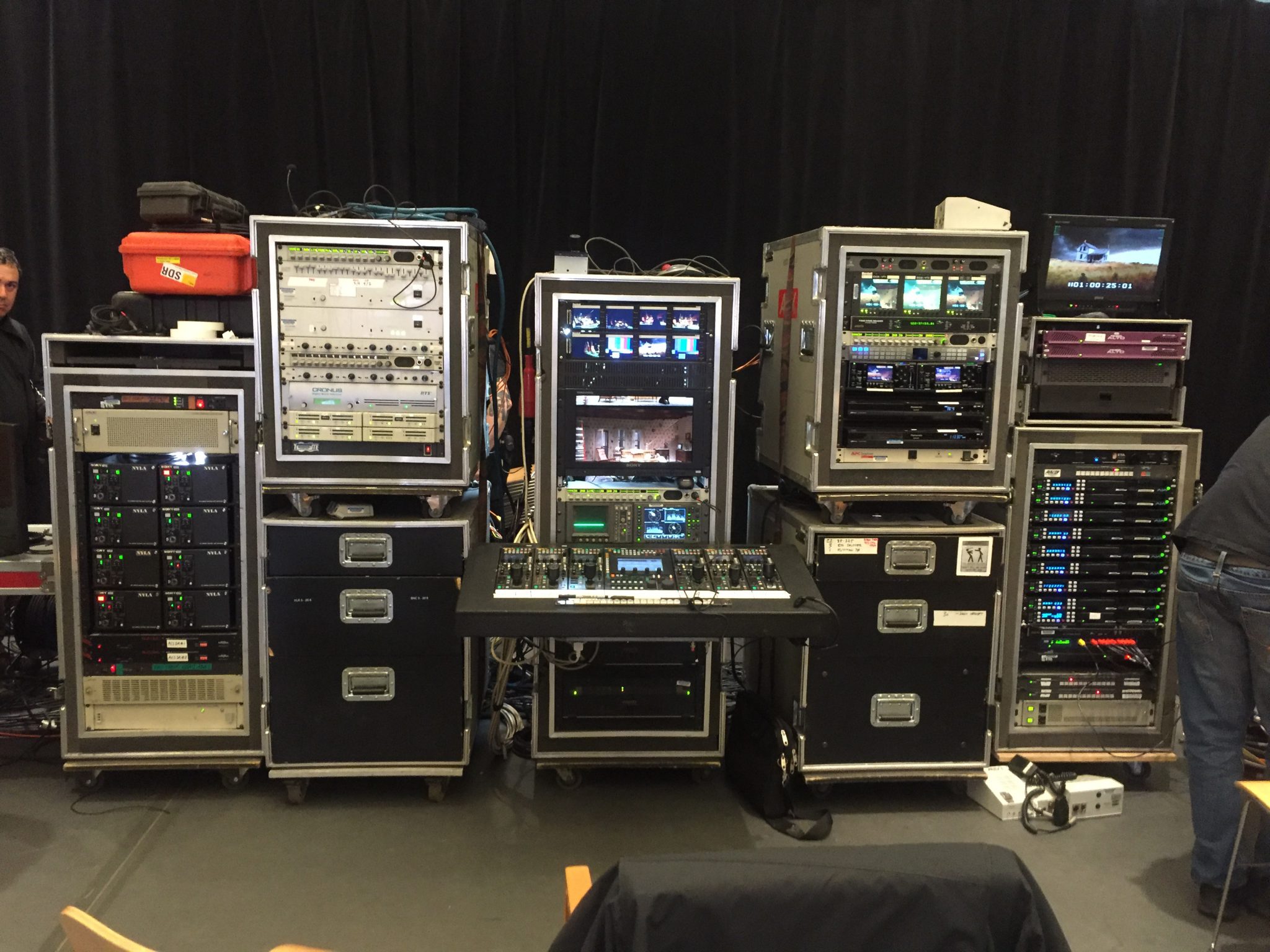

All Mobile Video’s HD & UHD Video carrypack systems offer quick, efficient and cost-effective solutions for multi-camera production either not requiring a production truck, or occurring in locations which would make a truck logistically difficult.
AMV’s system can accommodate various camera and recorder makes, models and configurations, including:
Sony HDC-F5500 S35mm large sensor, UHD or HD
Sony HDC-4300 2/3″ sensor, UHD or HD
Sony HDC-2400/2500 2/3″ sensor, HD
Sony Venice 2 or PMWF55 (with full CCU control)
Aja KiPro or Cinedeck recorders
See tabs for further details
Multiple systems with varying specifications are available. Our For-A carrypack system offers:

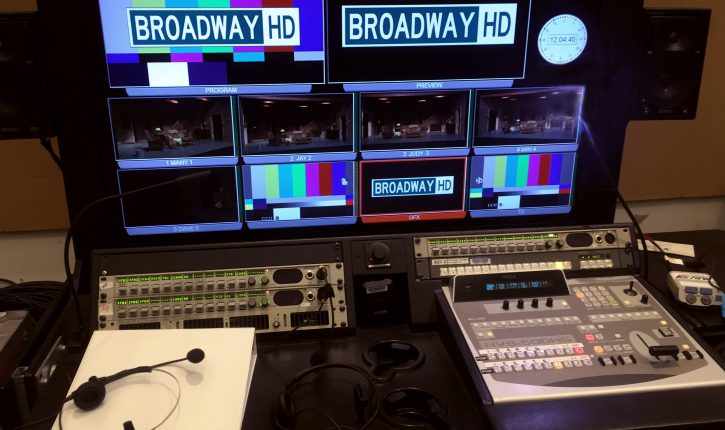

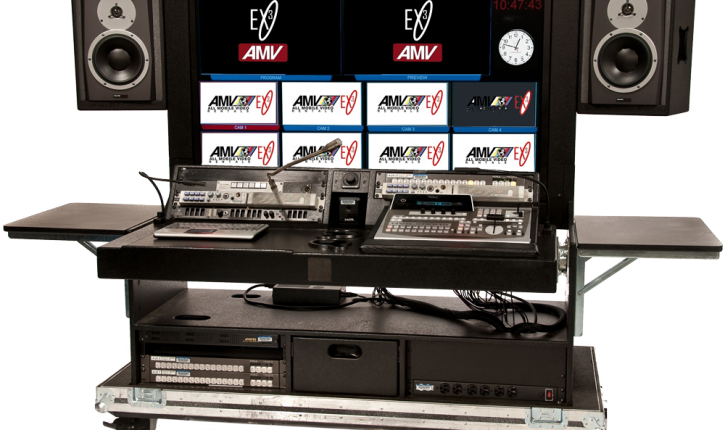

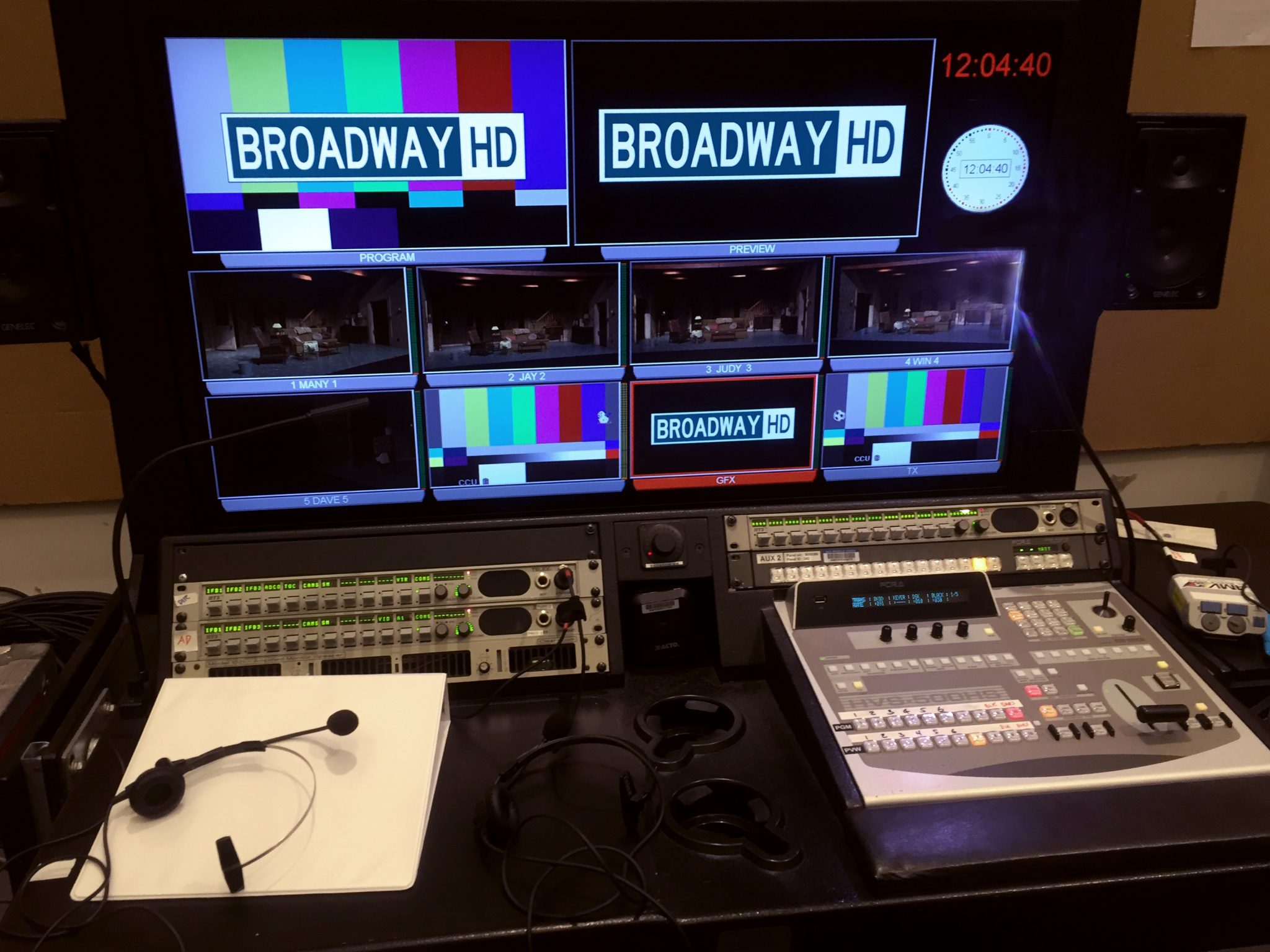

PRODUCTION BENCH
Case becomes furniture design (space for Director & TD plus two flip-up wings for additional space)
All connections between racks are via multi-coupler cables for quick and efficient set-ups and strikes
- 1 Boland 52″ 1080p HD LCD, with up to twenty images Miranda multiviewers

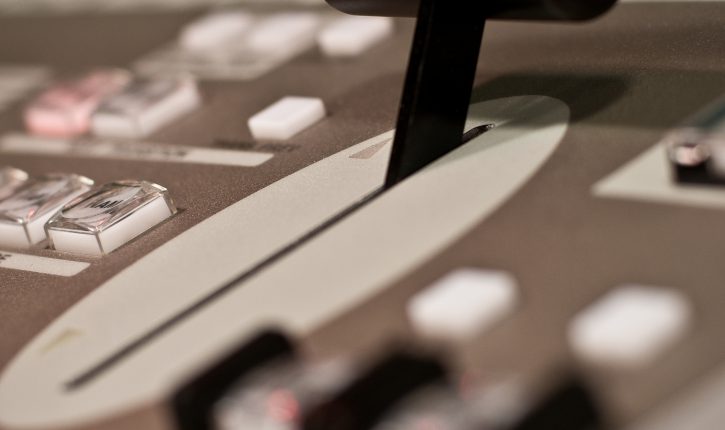

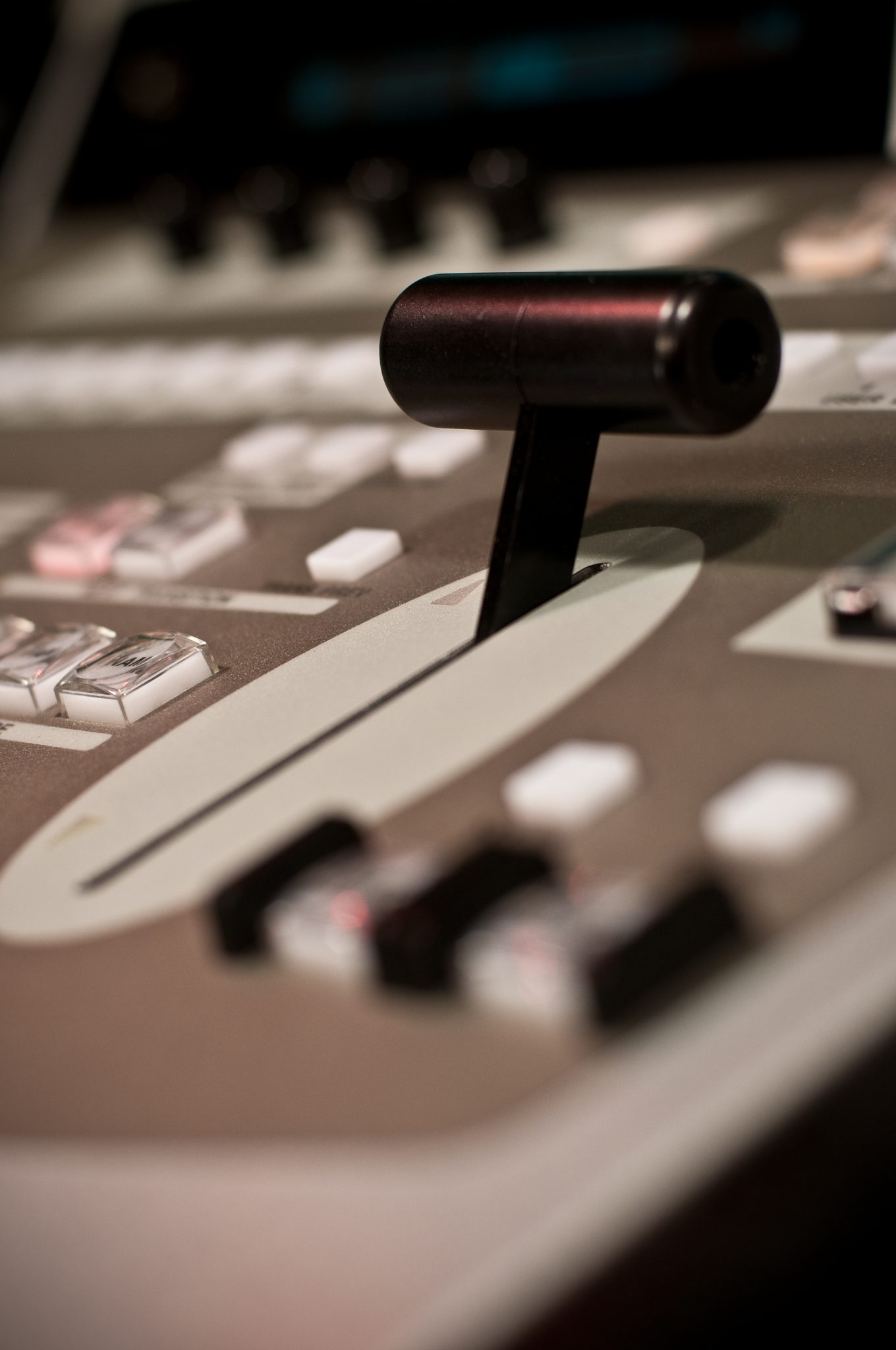

- 1 For-A HVS300 Hanabi HD 12-input 1.5G HD Production switcher
- 3 RTS KP12 4-wire comms rack stations
- 1 Wholer 4-channel PFL audio speakers
- 2 Genelec 1029a control room audio speakers
- 1 Oxmoor VCA volume control
- 1 Pencil sharpener
- 2 Little Lights
- 1 Utility power strip
Multi-Format System :
1080HD/59.94i, 50i, 29.97PsF, 23.98PsF; 720HD/59.94p, 720/50p; 525SD/60, 625/50

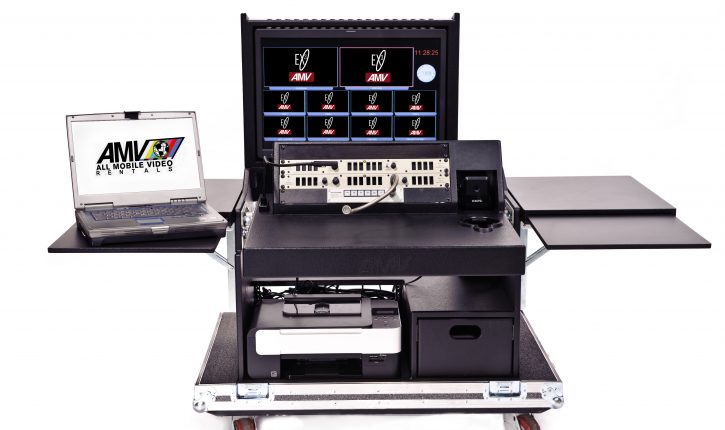

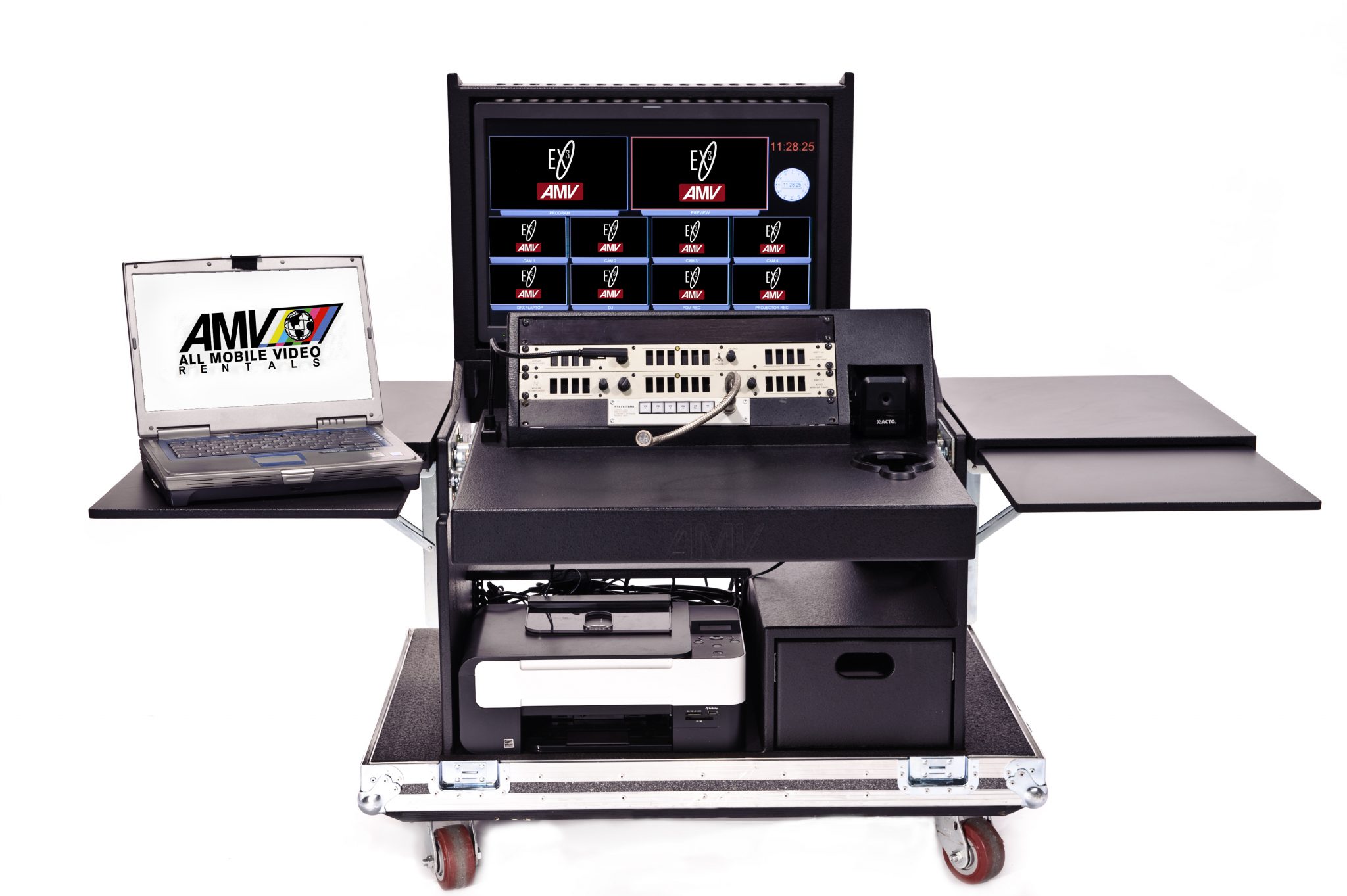

PRODUCER & LD BENCH(s)
Integrated desk, 26” HD LCD monitor, RTS KP12 comms panel, Wholer PFL audio speaker, Little Light & flip-up wings for additional space if needed, optional printer
CAMERA OPTIONS
- Sony HDC2400/2500 SMPTE fiber
- Sony HDC3500V SMPTE fiber
- Sony HDC4300 SMPTE fiber
- Sony HDC-F5500 SMPTE fiber
- Sony Venice 2 (with CCU control)
- Sony PMWF55 (with CCU control)
- Sony Sony HDCP50/43 or HDCP1/3 box cameras
- Panasonic AW-UE150 PTZ cameras
- Sony FR7 PTZ cameras
Or various other cameras …
LENSES
All Mobile Video offers a comprehensive inventory of the highest quality lenses from Fujinon, Canon and Zeiss
CAMERA SUPPORT
- Sachtler, Vinten, Cartoni & OConnor tripods
- Sachtler Vario & Vinten Fulmar, Quattro & Osprey Pedestals (optional)
- Polecam AutoPods (optional)
- Blackcam B60, B40 & B10 railcam systems (optional)

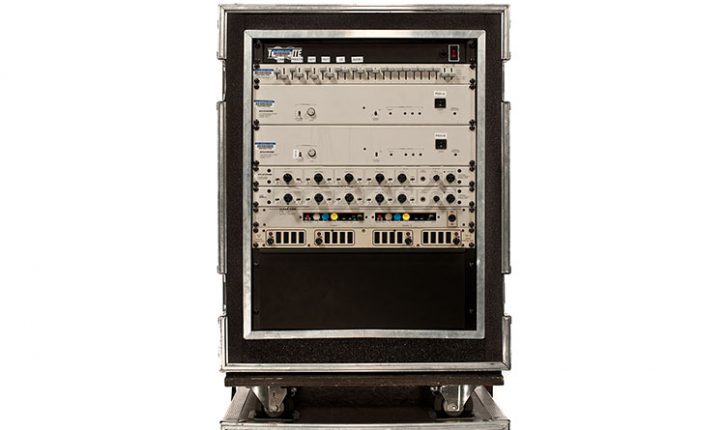

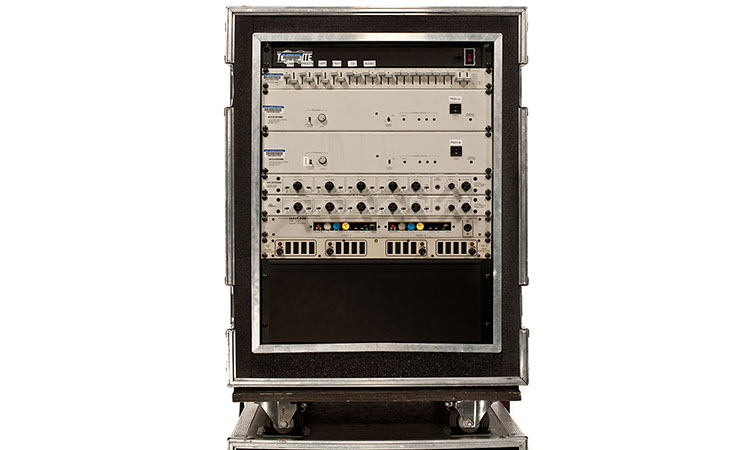

COMMUNICATIONS
- RTS Omneo 32 port communications system
- RTS PS31, KP12s, SAP612, TW-12B
- Twelve throw-down BP325 beltpacks & DT108/109 headsets
- FreeSpeak wireless headsets/beltpacks (optional)
Telos Link hybrids, Telos One phone interfaces, etc. (optional)
GRAPHICS
- Ross Xpression (optional)

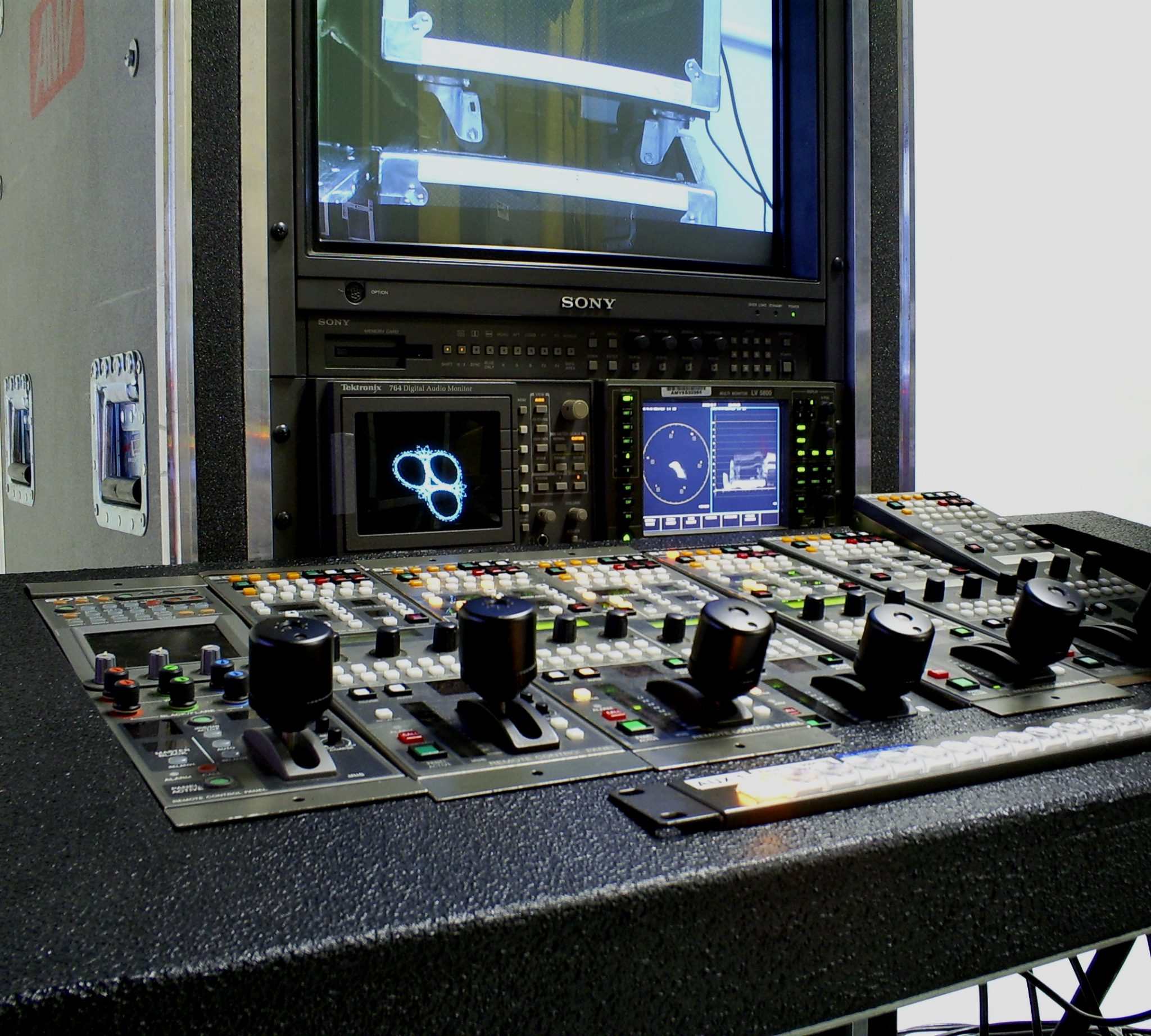

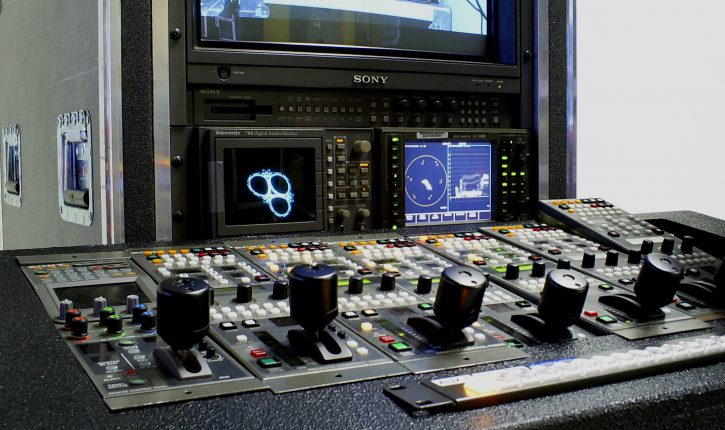

CAMERA SHADING / TERMINAL
Case becomes furniture design
- 2 Marshall V-R44P Quad 4″ LCD Monitor
- 1 Sony Color Critical OLED HD monitor
- 1 Leader LV5800 HD waveform monitor
- 1 For A AUX router panel (3 total)
- 1 Panacea/Leitch/Harris CQ 16×8 HD router
- 1 Evertz 5600MSC Sync / Master Clock
- 11 Evertz HD DA & down converters
- 4 Evertz 7700ADA7+3RU Analog Video DA
- 4 Evertz 7700ADA-AUD-3RU audio DA
- 3 Leitch Analog Video DA
- 2 Leitch Analog Audio DA
- 1 AJA HD10A Analog Component HD to HD-SDI
- Miranda AMX800 timecode embedder
- Miranda KALEIDO-ALTO-HD multiviewer
- Miranda remote control unit
- Rane AVA22 2-ch audio delay
- Up to 8 Sony RCP paint boxes
AUDIO
Audio distribution amplifiers to all record ISOs and Line-cut recordings.
POWER & SPACE REQUIREMENT
- Power Draw: 105-135 amps (7-9 15amp circuits) single phase 110v (depending on the quantity of cameras/recorders required). AMV can supply a power tie-in package and PD (optionally)
- Space Requirement: typically 120-225 sq ft active space plus 80-160 sq ft dead case storage
RECORD DECKS
- Aja Ki Pro
- Cinedeck
- Other recorder make/models available (optional)
PLAYBACK SERVERS
- EVS XT3 (optional)
- Envivo Studio & Replay (optional)
