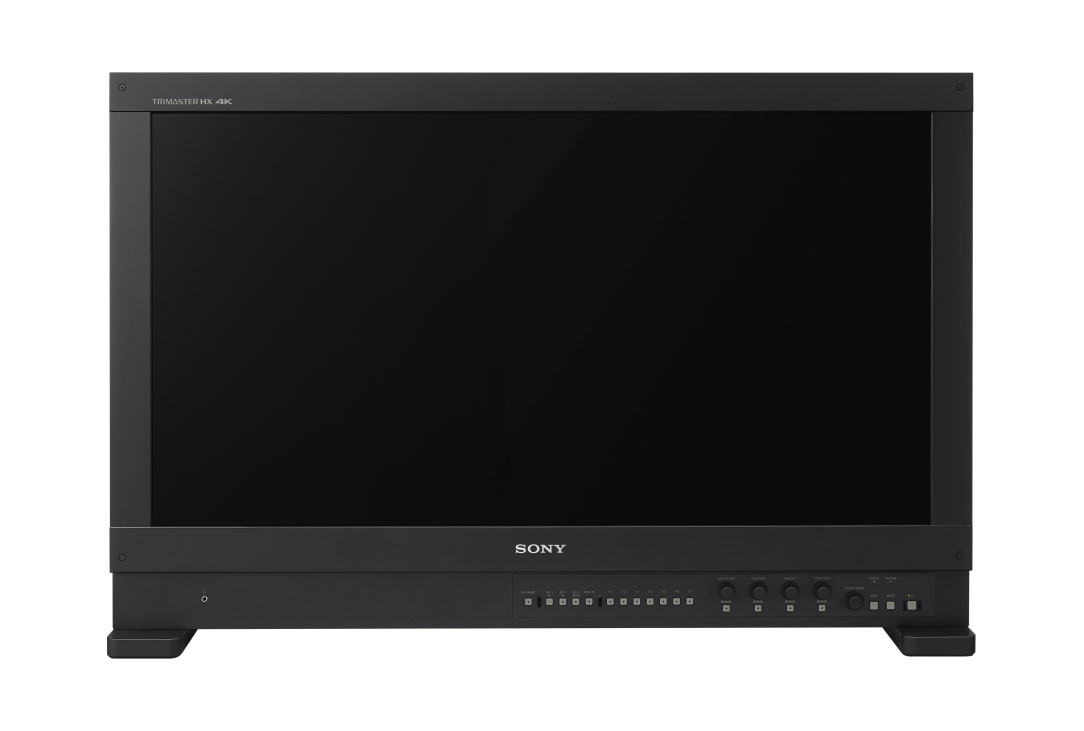

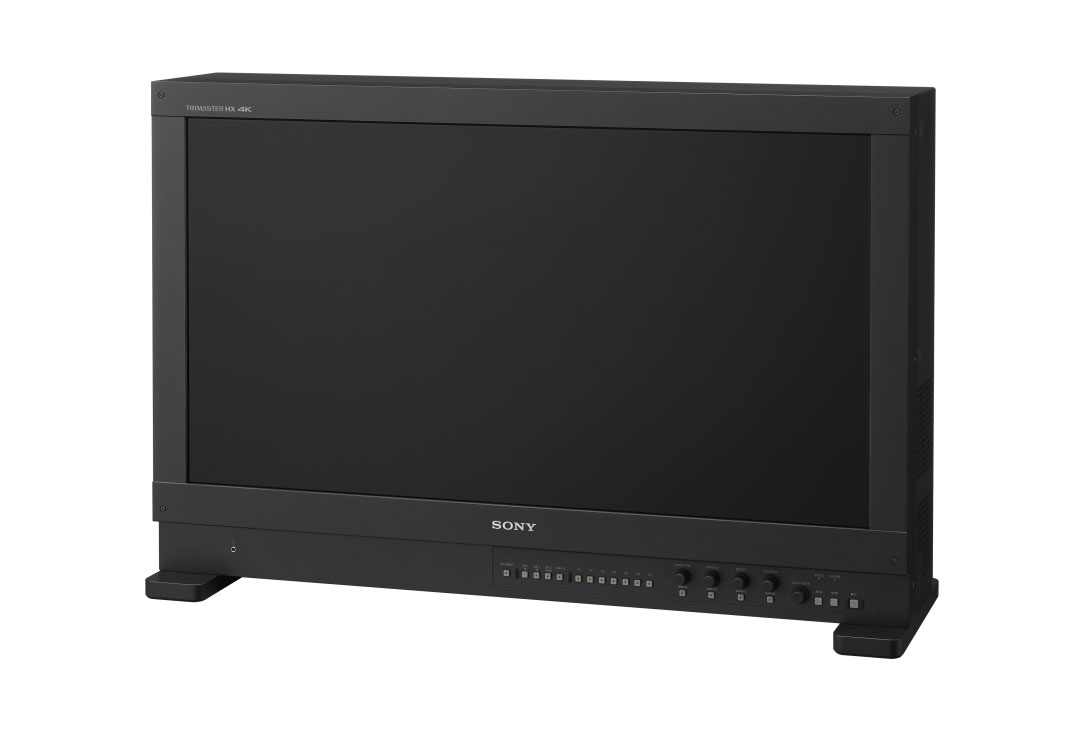

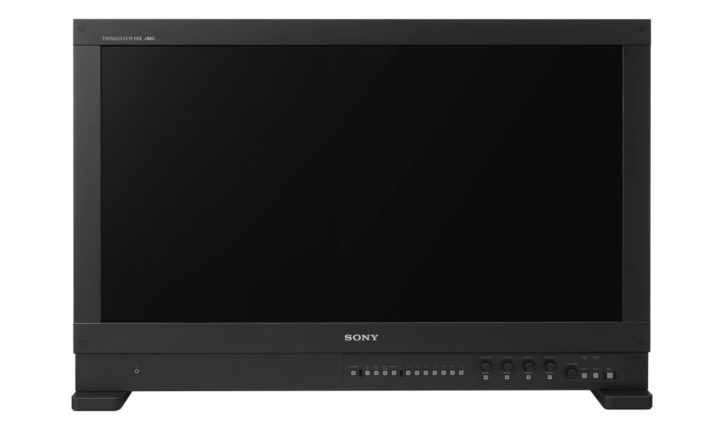

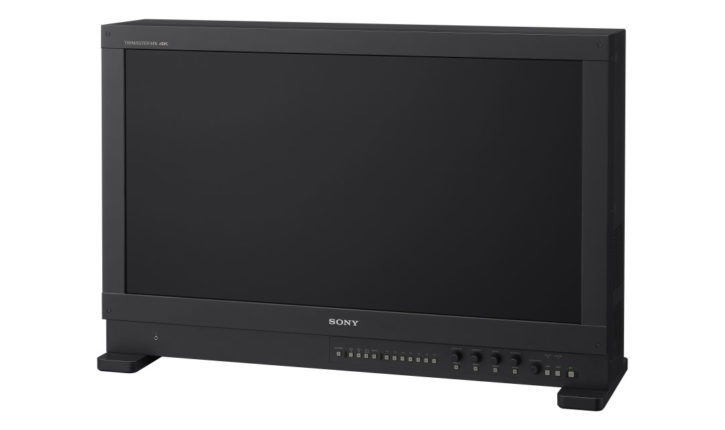

The New BVM-HX310 TRIMASTER HX™ Professional Master Monitor gives absolute confidence that you’re always seeing the true picture. Offering unrivalled 4K HDR picture quality, accuracy and consistency, it’s ideal for demanding on-set, studio and post-production applications including 4K digital cinematography.
It’s the 4K HDR monitor professional colorists have been waiting for. An optimal choice for critical color grading and CG tasks, the BVM-HX310 offers support for industry-leading wide color gamuts including DCI-P3, ITU-R BT.2020, S-Gamut3.cine and S-Gamut3.
Fully realizing the advanced performance of the TRIMASTER HX panel, the BVM-HX310 achieves 1,000 nits of full-screen brightness with 1,000,000:1 contrast ratio. It’s ideal for producing High Dynamic Range (HDR) content with rich, deep black areas and accurate reproduction of bright peak highlights. Together with support for a much wider color gamut than conventional monitors, the BVM-HX310 can reproduce high-resolution HDR images with images clarity, depth, and realism.
Highlights:
- Unrivaled 4K HDR Picture Quality
- Accuracy and Consistency
- Supports ITU-R BT.709, DCI P3 and ITU-R BT.2020 S-Gamut3.cine and S-Gamut3wide color spaces; 1,000 nits of full-screen brightness with 1,000,000:1 contrast ratio
- Relative contrast 1/2, 1/3, and ¼ enables grading for up to 4000 nits
- Created for (HDR) content with rich, deep black areas and accurate reproduction of bright peak highlights
SPECIFICATIONS
Panel
α-Si TFT Active Matrix LCD
Picture size (diagonal)
31.1 in (789.1 mm)
Effective Picture size (H x V)
698.0 x 368.1 mm (27 1/2 x 14 1/2 inches)
Resolution (H x V)
4096 x 2160 pixels
Aspect
1.89 : 1) 17 : 9
Pixel efficiency
99,99%
Panel drive
10-bit
Panel frame rate
48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
Viewing angle (panel specification)
89°/89°/89°/89° (up/down/left/right contrast > 10:1)
Color temperature
D55, D61, D65, D93, DCI*1, and user 1–5 (5,000 K to 10,000 K adjustable), DCI XYZ
Luminance (panel specification) (typical)
1000 cd/m2
Color space (Color gamut)
ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, Native*3, S-GAMUT3*2, S-GAMUT3.cine*2
Transmission Matrix
ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709
EOTF
2.2, 2.4, 2.6, CRT, 2.4 (HDR), S-Log3 (HDR), S-Log3 (Live HDR), S-Log2 (HDR), SMPTE ST 2084 (HDR), ITU-BT.2100 (HLG)

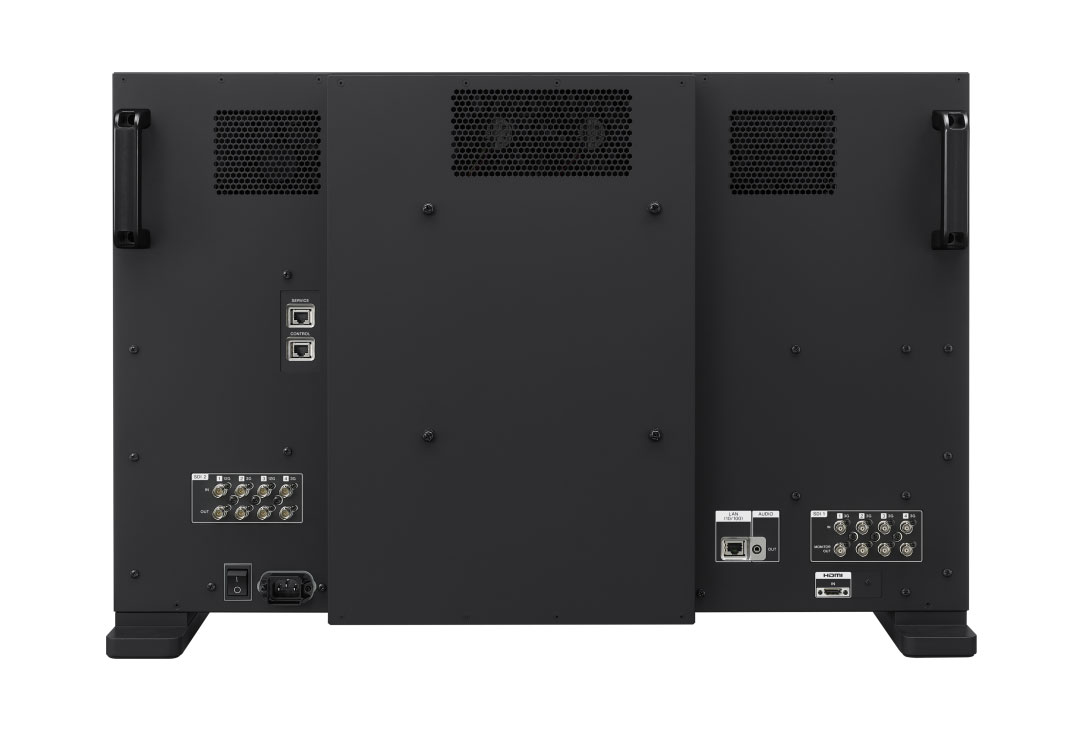

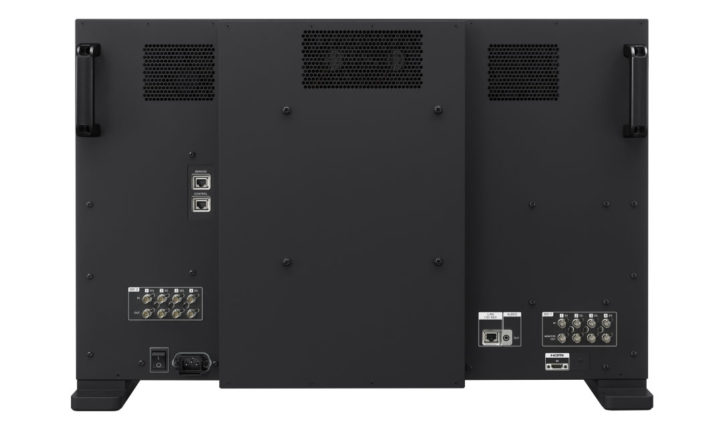

Input
SDI 1 input
(3G/HD) BNC (x4) Input impedance: 75 Ω unbalanced
SDI 2 input
(12G/6G/3G/HD) BNC (x2) , (3G/HD) BNC (x2), input impedance: 75 Ω unbalanced
HDMI
HDMI (HDCP2.3/1.4) (x1)
Serial remote (LAN)
Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1)
Output
SDI 1 MONITOR output*4
(3G/HD) BNC (x4), output impedance: 75 Ω unbalanced
SDI 2 output
(12G/6G/3G/HD) BNC (x2), (3G/HD) BNC (x2), output impedance: 75 Ω unbalanced
Audio monitor
Stereo mini jack (x1)
Headphones
Stereo mini jack (x1)
General
Power requirement
AC 100 V to 240 V, 5.1 A to 2.1 A, 50/60 Hz
Power consumption
Approx. 450 W (max.)
Operating temperature
0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F)
Operating humidity
30% to 85% (no condensation)
Storage / transport temperature
-20°C to +60°C (-4°F to +140°F)
Storage / transport humidity
0% to 90%
Operating / storage / transport pressure
700 hPa to 1060 hPa
Dimensions (W x H x D)
30 3/4 x 20 1/2 x 9 1/8 in (778 x 519.5 x 230 mm)
Mass Approx.
29 kg (63 lb 15 oz)
Supplied accessories
AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (1)
